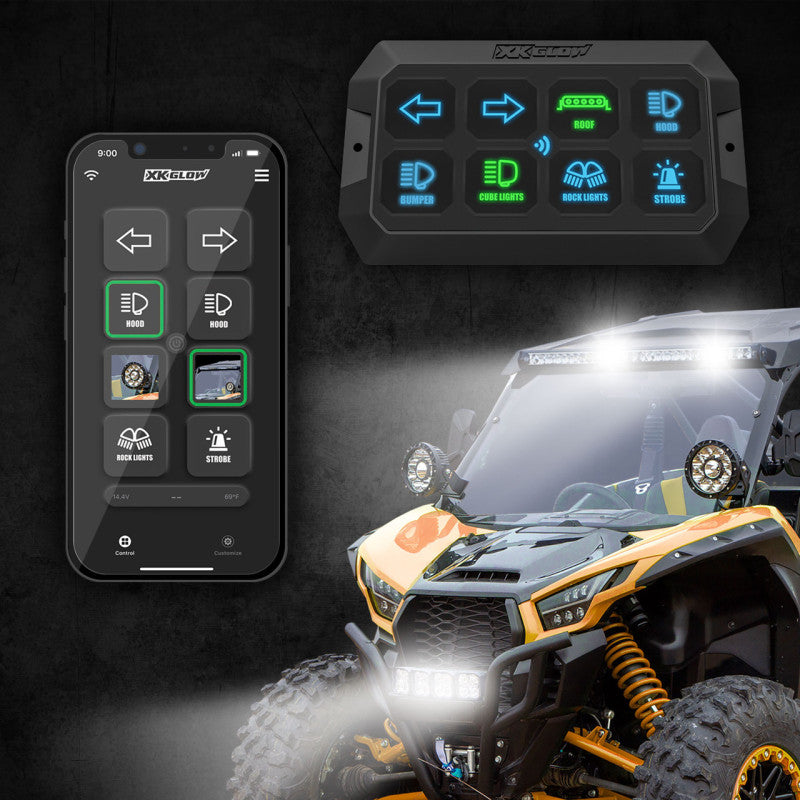

Introducing the XKGlow XKCOMMAND Off Road Switch Panel, your ultimate control center for off-road lighting and accessories. This innovative switch panel allows for comprehensive customization and control via the XKcommand app, providing you with the ability to toggle, dim, flash, and synchronize your vehicle's lights like never before. Waterproof, durable, and equipped with Bluetooth functionality, the XKCOMMAND system revolutionizes how you interact with your vehicle's electronics.
Key Features:
-

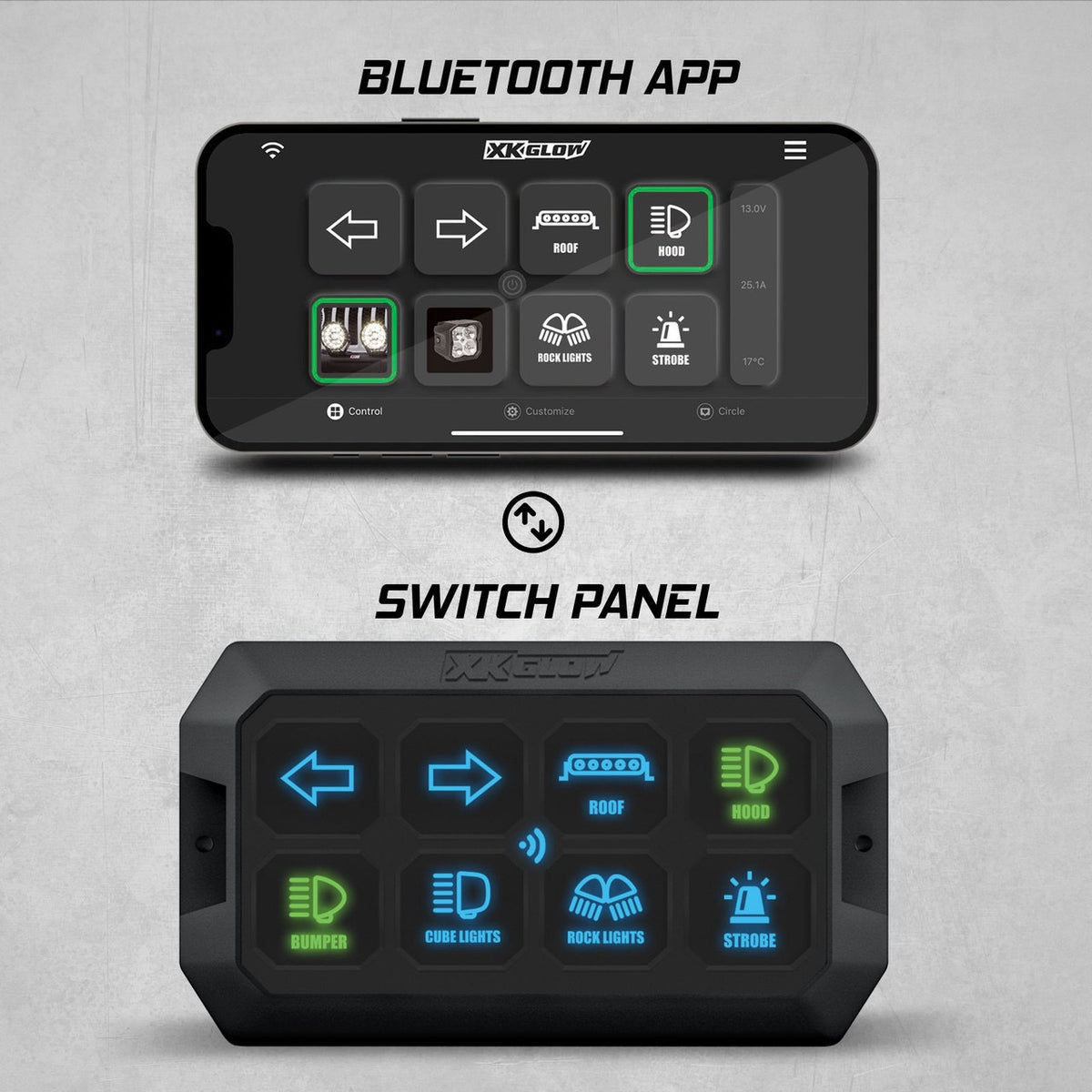

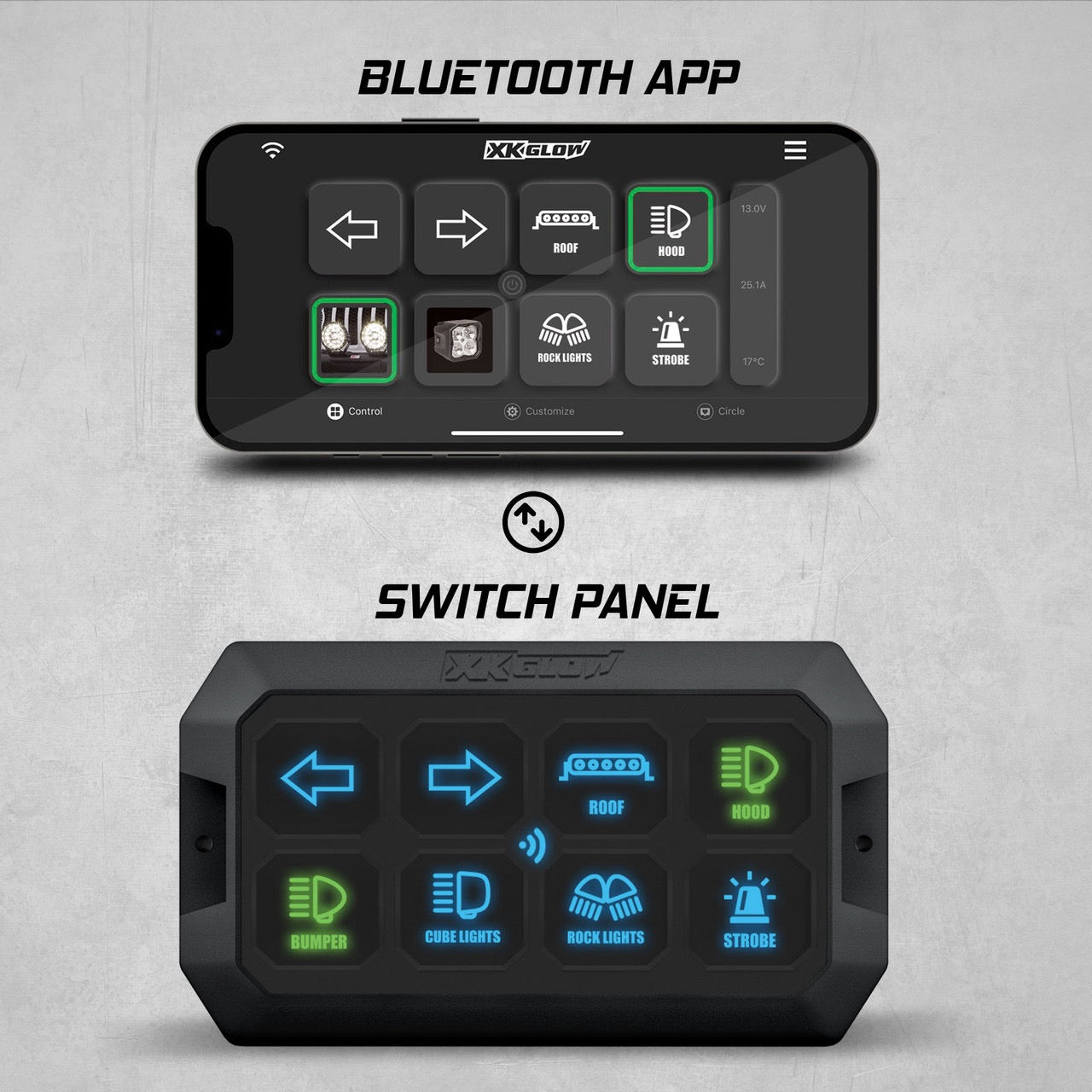

Dual Control System – Operate your accessories via the physical switch panel or through the XKcommand Bluetooth app, ensuring seamless operation.
-

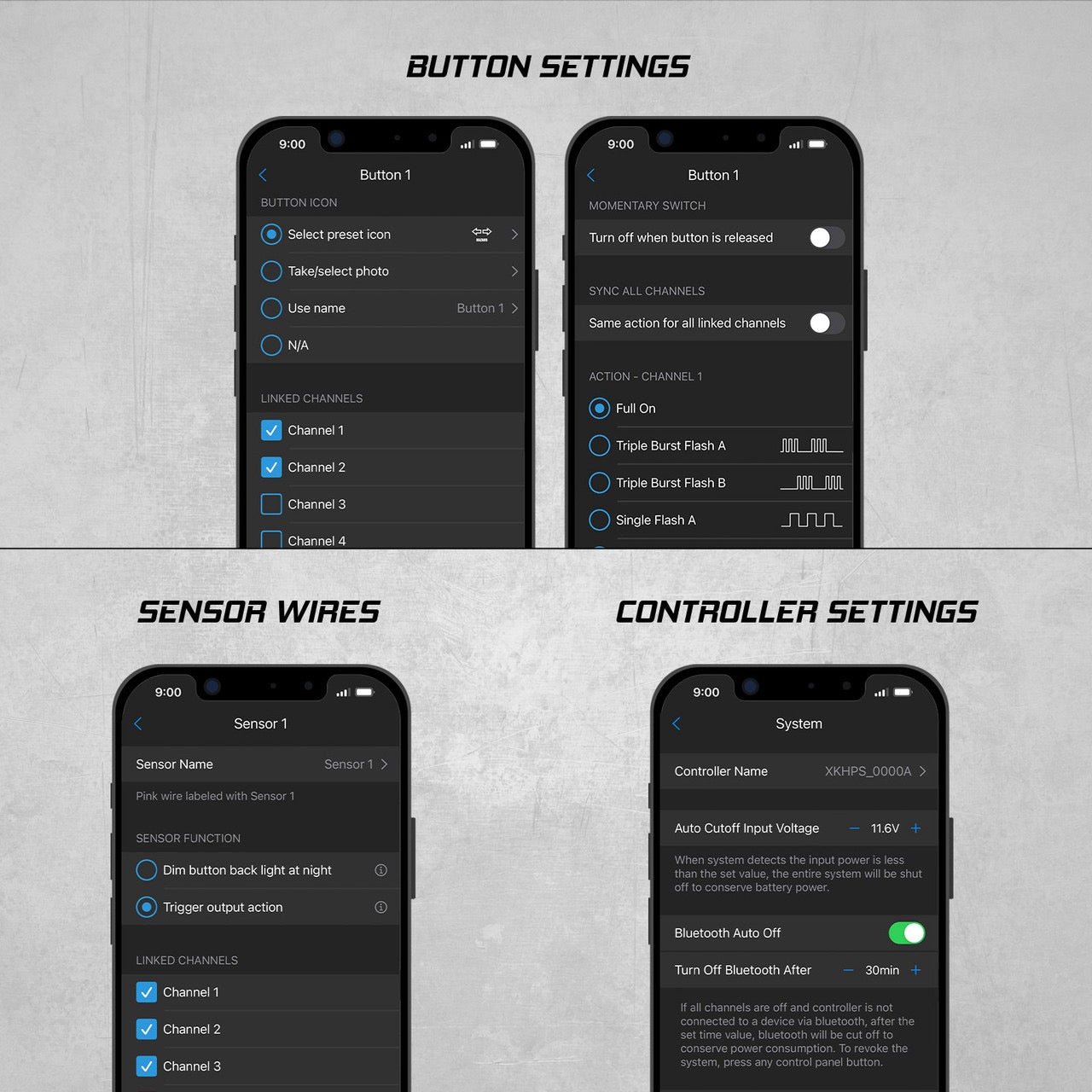

Configurable Switch Functions – Includes toggle, dimming, and six flash/strobe patterns, with the ability to create wig-wag effects.
-
Multi-Channel Customization – One switch can control multiple channels, which can perform the same or different patterns based on your configuration.
-

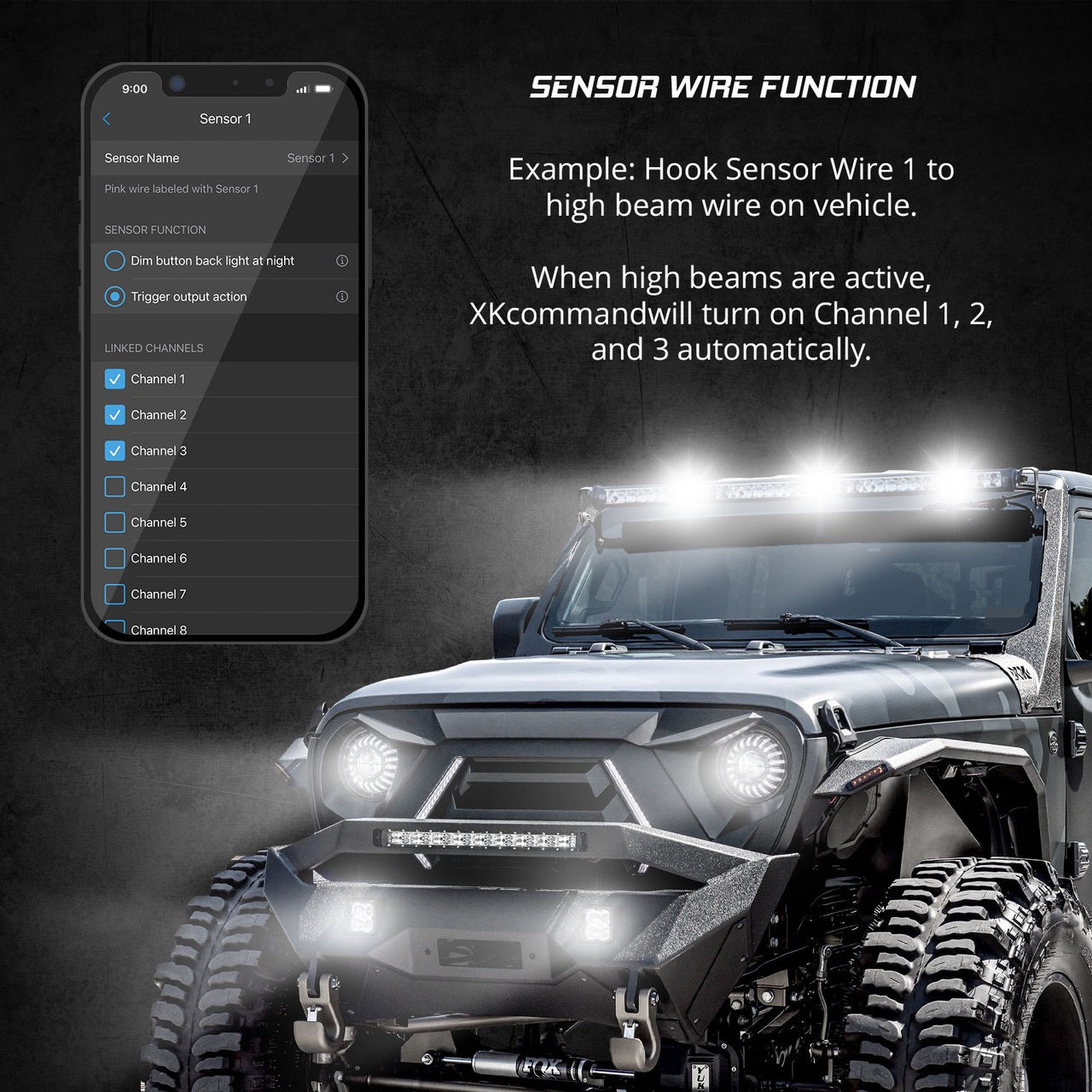

Programmable Sensor Wires – Three sensor wires can trigger specific actions, enhancing the functionality and responsiveness of your setup.
-
Customizable RGB Backlight – Personalize your switch panel with customizable backlights, icons, images, or text for each button.
-

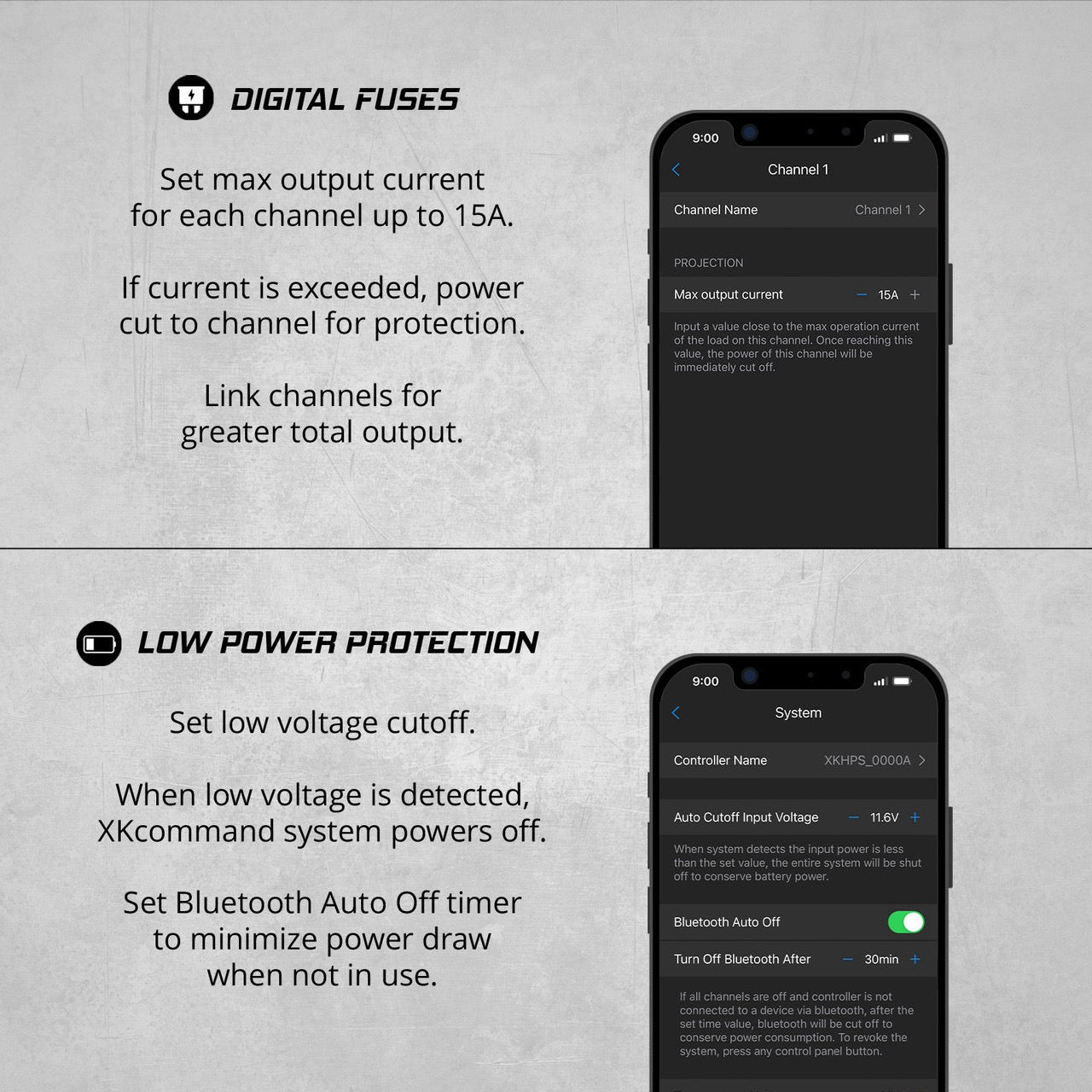

Robust Safety Features – Features configurable fuses for each output and low voltage auto-shutoff to protect your system.
-
High Capacity Outputs – Eight 15A output channels, programmable for combined higher amperage output if needed.
-
Wide Compatibility – Works with most 12V offroad lighting accessories and supports additional functions for comprehensive vehicle integration.
-
IP67 Waterproof Rating – Ensures durability and reliability in all weather conditions.
-
Three-Year Warranty – Comes with a three-year warranty, affirming its quality and longevity.
Elevate your off-road and on-road experience with the XK Glow XKCOMMAND Switch Panel, bringing advanced control and customization directly to your fingertips.
Specifications:
-
Max Current per Channel: 15A (expandable by linking channels)
-
Input Voltage: 9-16 volts
-
Sensor Wire Input: 9-16V (RGB wires), 3-16V (white wire)
-
Bluetooth: Version 4.0 Low Energy
-
Compatibility: Android 4.4 or higher / iOS 9 or higher
Included:
-
XKGlow XKCOMMAND Switch Panel
-

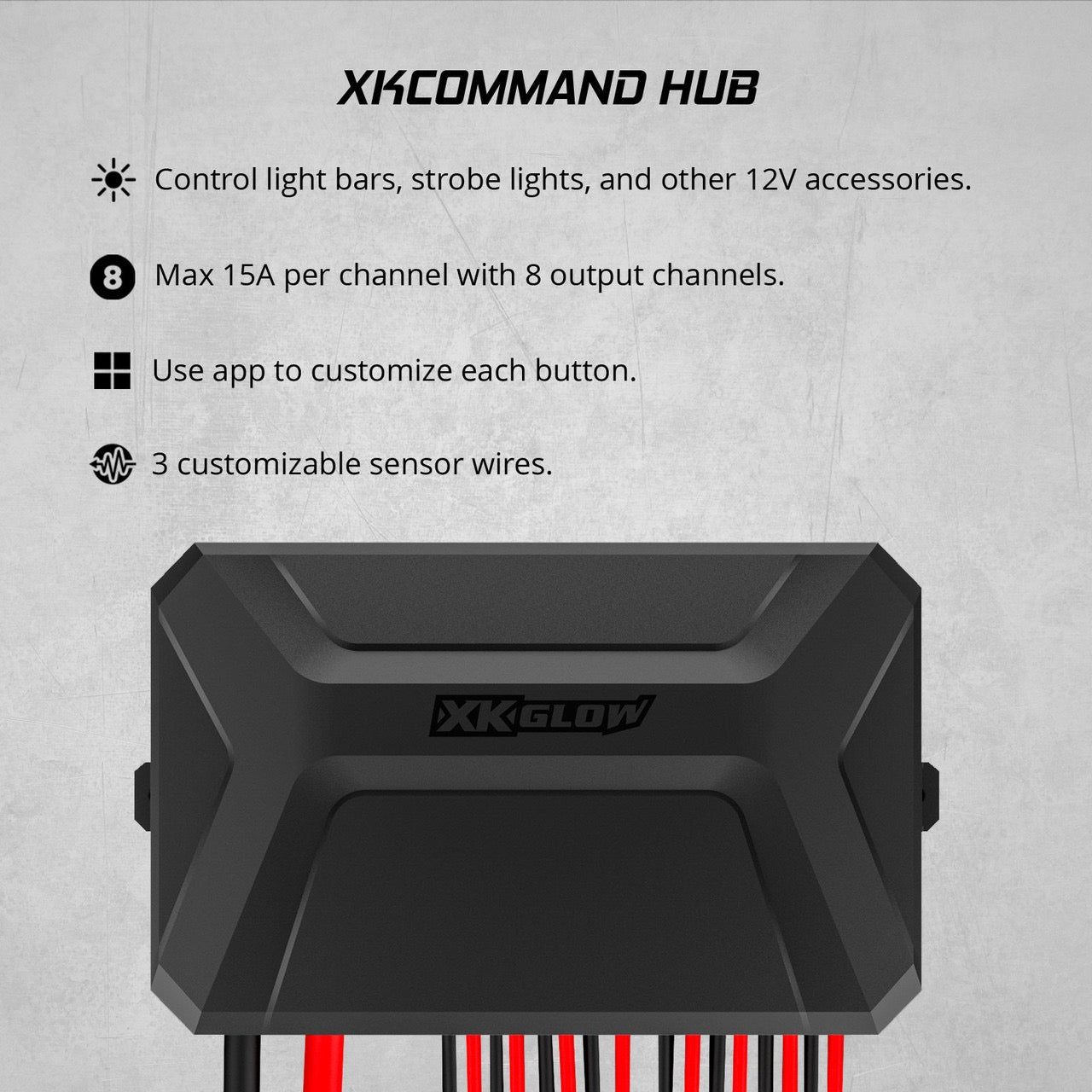

XKcommand Hub
-
Installation Hardware
-
User Manual
Disclaimer: For heavy-duty applications like winches, hoists, or other electric motors, a relay must be used with the XKcommand Hub to ensure safety and functionality.
