Overview

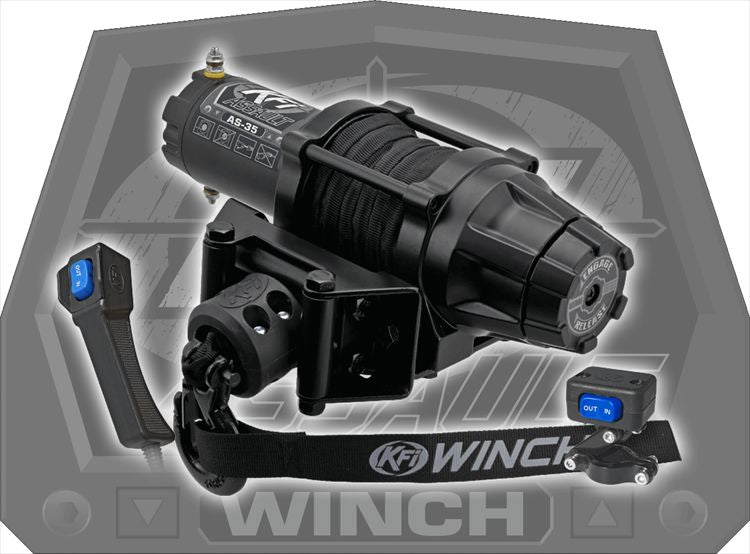

The KFI AS-35 Assault Series Winch is built to perform—whether you're breaking trail, buried in the mud, or dropping a plow blade in the snow. With 3500 lbs of pulling power and a rugged synthetic rope, this winch delivers dependable recovery strength without the weight and hassle of steel cable. Add in dual controls, waterproof sealing, and KFI's legendary build quality, and you've got a winch that won’t leave you stuck.
Key Features
-
3500 lb Pulling Capacity: Perfect for ATVs and mid-size UTVs that need serious muscle in compact form.
-
50' Synthetic Cable: 3/16" diameter Dyneema rope with 5' protective sheath and looped end.
-
Dual Braking System: Dynamic and mechanical braking for safe, controlled winching.
-
All-Metal Gear Drive: 180:1 planetary transmission and heavy-duty cam-activated freespool clutch.
-
Two Control Options: Handlebar-mounted mini-rocker switch and 14' corded remote with plug-and-play connector.
-
Heavy-Duty Contactor: Protects your electrical system and ensures reliable switch operation.
-
KFI Cable Hook Stopper: Eliminates roller damage, clatter, and over-spooling.
-
Water Resistant: Seals out mud, water, and snow for all-weather reliability.
-
Trail Tough Build: CE Certified and backed by a 2-Year Limited Warranty.
Specifications
- Model: AS-35 Assault Series
- Rated Line Pull: 3500 lbs
- Motor: 12V DC, 1.15 hp Permanent Magnet
- Gear Ratio: 180:1
- Brake: Dynamic and Mechanical
- Clutch: All-Metal Cam Activated Freespool
- Drum Size: 1.75" (D) x 3.19" (L)
- Rope: 3/16" (D) x 50' (L) synthetic (smoke)
- Fairlead: Multi-directional POM Roller
- Control: Mini-Rocker (handlebar mount) + 14' corded handheld remote
- Winch Dimensions: 13.62" L x 4.44" D x 4.76" H
- Mounting Bolt Pattern: 3.00" x 4.88" (4-hole)
- Mount Plate: Fairlead mount included (model-specific mount sold separately)
- Battery: 12 Amp/hour minimum recommended
- Warranty: 2-Year Limited
- Weight: 25.6 lbs (complete kit)
- Certification: CE Certified
Included

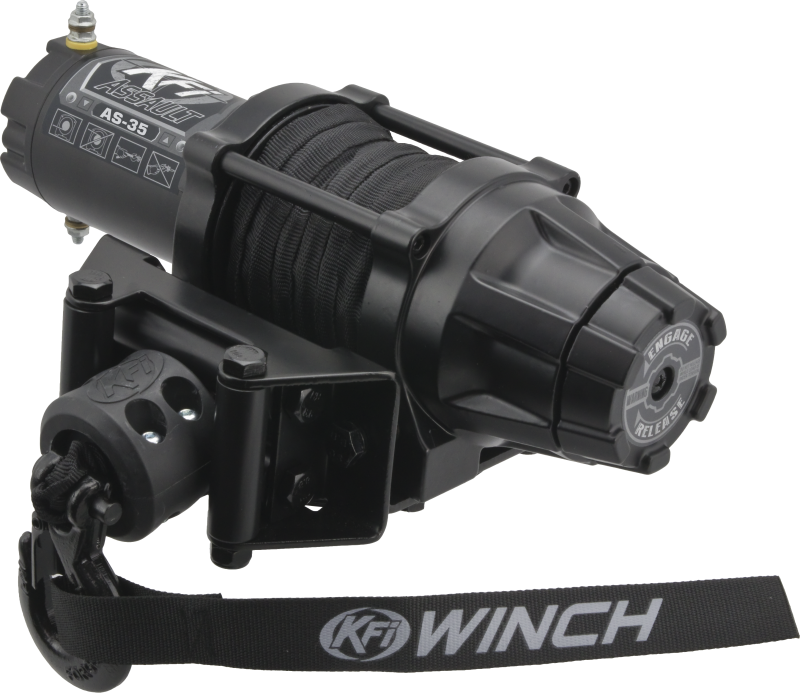

- AS-35 Assault Series 3500 lb Winch
- 50' Synthetic Rope with 5' Protective Sheath

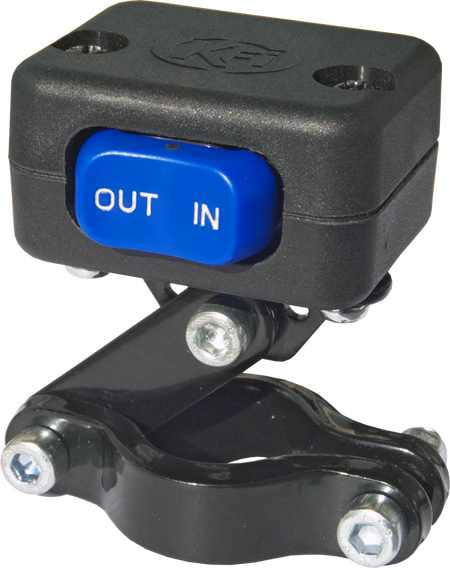

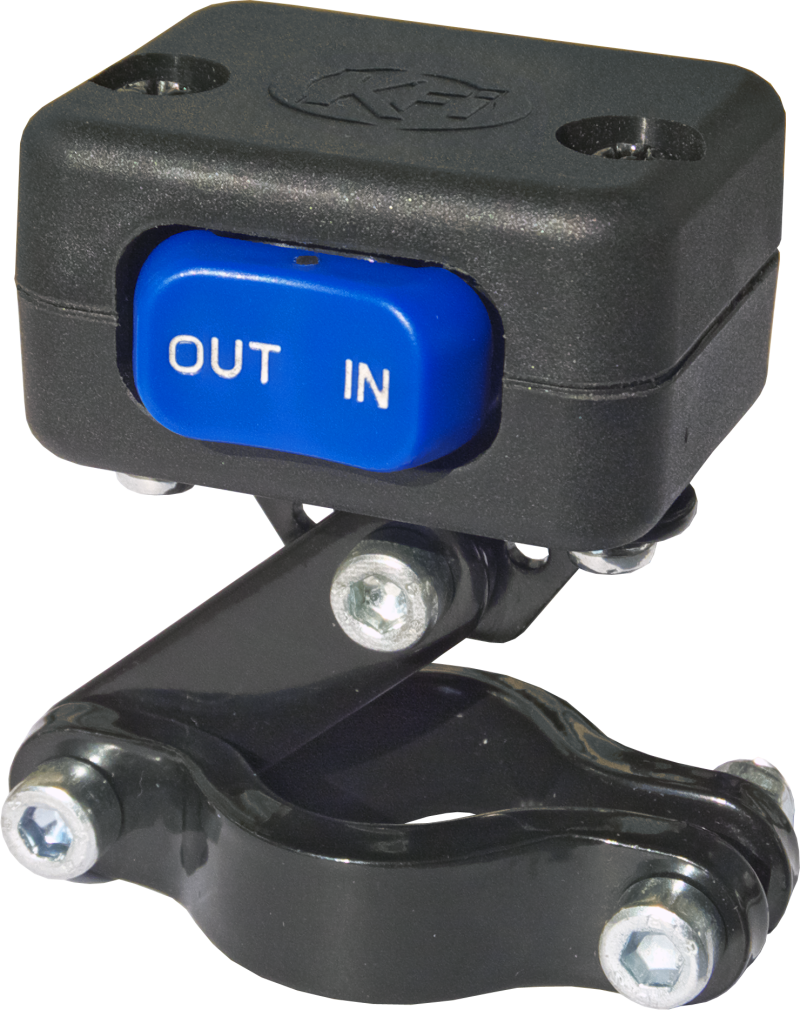

- Mini-Rocker Handlebar Switch with Mounting Bracket

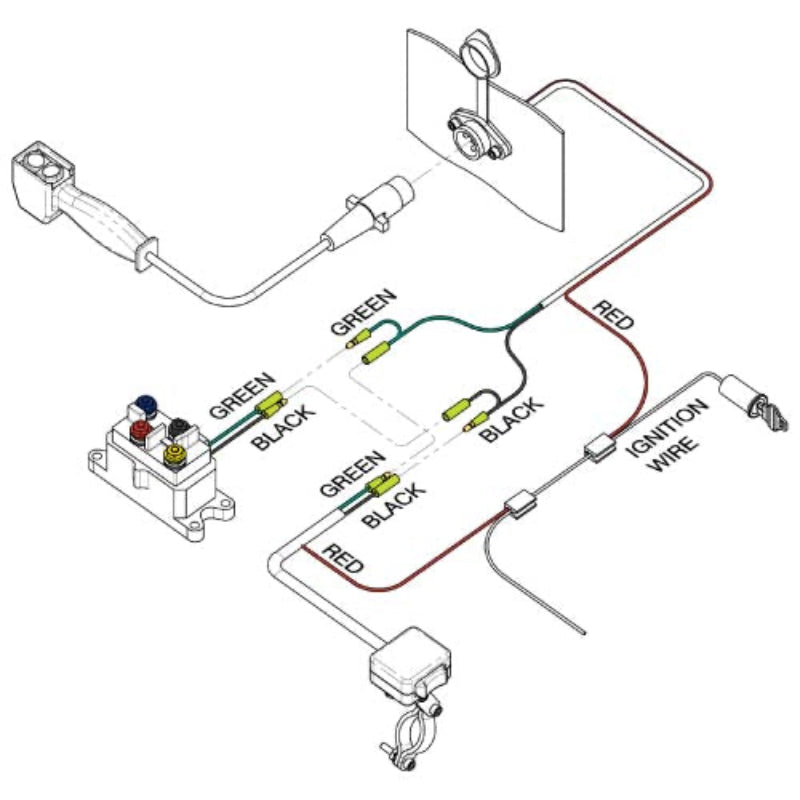

- 14' Corded Remote with Plug & Play Wiring
- Heavy-Duty Contactor (AS-CONT)
- KFI Split Cable Hook Stopper (#ATV-SCHS)
- Multi-directional POM Roller Fairlead
- Mounting Hardware and Installation Instructions
Performance Specs
| Line Pull (lbs) |
Line Speed (FPM) |
Max Current (A) |
| 0 |
12.1 |
28 |
| 1000 |
10.8 |
60 |
| 2000 |
8.2 |
90 |
| 2500 |
7.5 |
115 |
| 3500 |
4.9 |
180 |
*Run Time: 1 minute | **Cooling Time: 5 minutes
Line Capacity by Drum Layer
| Layer |
Rated Line Pull (lbs) |
Cable Capacity (ft) |
| 1 |
3500 |
7.9 |
| 2 |
2907 |
17.7 |
| 3 |
2486 |
28.9 |
| 4 |
2171 |
41.7 |
| 5 |
1927 |
50.0 |
Take full control of your ride’s recovery game—power, protection, and precision in one trail-proven winch.
