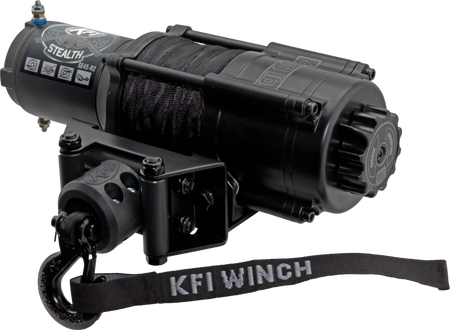

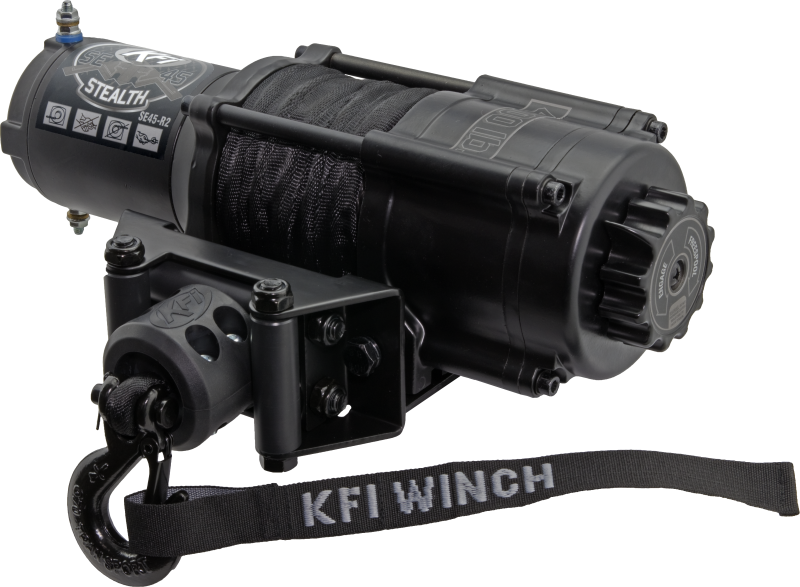

KFI SE45 Stealth 4500 lb Synthetic Rope Winch

Overview

Whether you're crawling through deep mud, pushing snow, or climbing out of a bad spot, the KFI SE45 Stealth Series Winch is built to get you back on track. With 4500 lbs of pulling power, a durable synthetic rope, and rugged all-metal internals, this winch delivers serious performance with smooth, dependable control. Once it's gone, it's gone—this model is discontinued and replaced by the AS-50X, so grab it while you can.

Key Features

• 4500 lb Pulling Power: Ideal for mid-size to large UTVs and ATVs.
• Durable Synthetic Rope: 15/64" x 38' Dyneema rope resists kinks, frays, and rust.
• Sealed Performance: Water-resistant design keeps the elements out and performance in.
• Dual Braking System: Dynamic and mechanical drum brake for confident load holding.
• All-Metal Gear Drive: 166:1 planetary gear ratio with metal-on-metal reliability.
• Free-Spool Clutch: Cam-activated all-metal clutch for fast line payout.
• Multiple Control Options: Includes dash-mounted switch and heavy-duty corded remote.
• Fairlead & Stopper Included: Comes with POM roller fairlead and cable hook stopper.
• Compact Build: Fits most applications with 4-hole mounting pattern (3.00" x 4.875").

INCLUDED

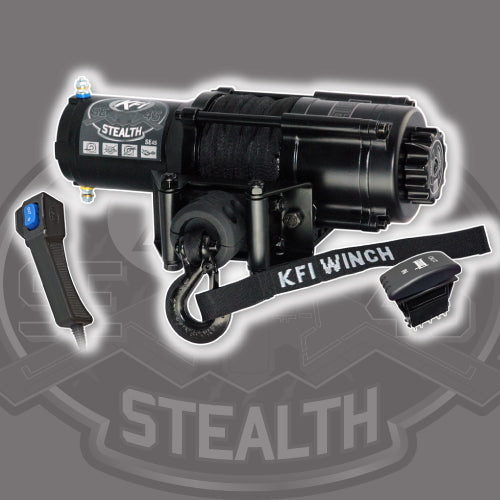

• SE45 Stealth 4500 lb Synthetic Rope Winch

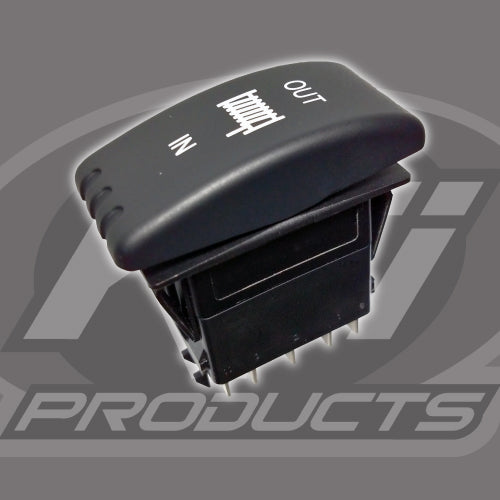

• UTV Dash Rocker Switch

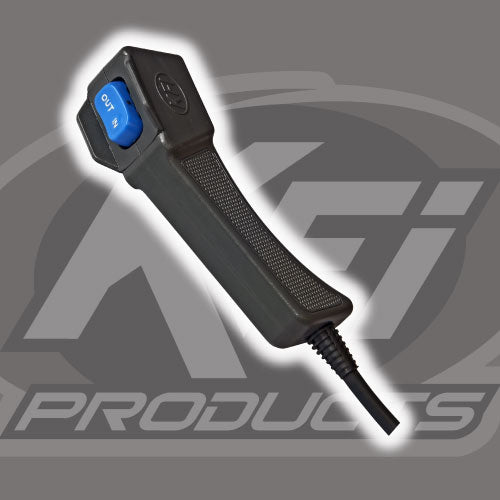

• Handheld 14' CordedRemote

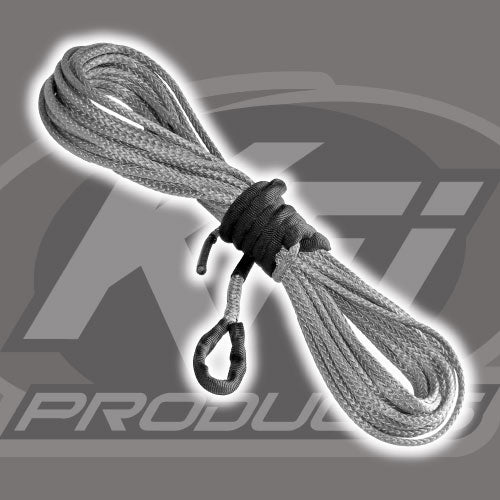

• 38' Synthetic Cable

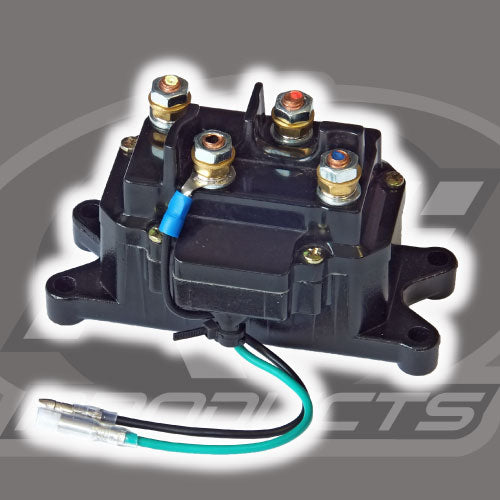

• Heavy Duty Electric Contactor
• Split Cable Hook Stopper

Specifications

• Model: SE45-R2 (UTV Series)
• Motor: 12V DC, 1.7 hp Permanent Magnet
• Gear Ratio: 166:1
• Clutch: Cam-activated free-spool
• Brake: Dynamic and mechanical drum
• Rope: 15/64" x 38' synthetic (smoke color)
• Fairlead: Multi-directional POM roller
• Control: Dash switch + corded remote
• Dimensions: 14.6" L x 4.55" D x 4.82" H

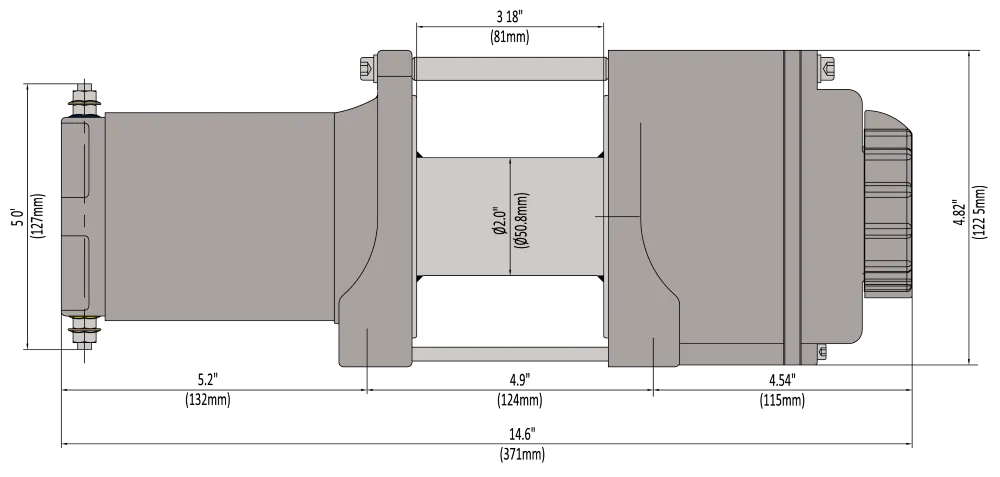

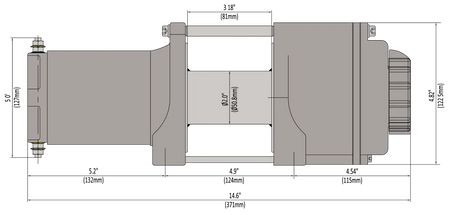

• Drum Size: 2.0" D x 3.19" L
• Weight: 33.65 lbs (complete kit)
• Battery: 12 Ah minimum recommended
• Mounting Bolt Pattern: 3.00" x 4.875" (4-Hole)
• Mounting Plate: Fairlead mount included (machine-specific winch mount required)
• Warranty: KFI 1-Year Limited

Performance Specs

Line Capacity by Drum Layer

When you're buried deep and need serious pull power—trust KFI's SE45 to do the heavy lifting.
