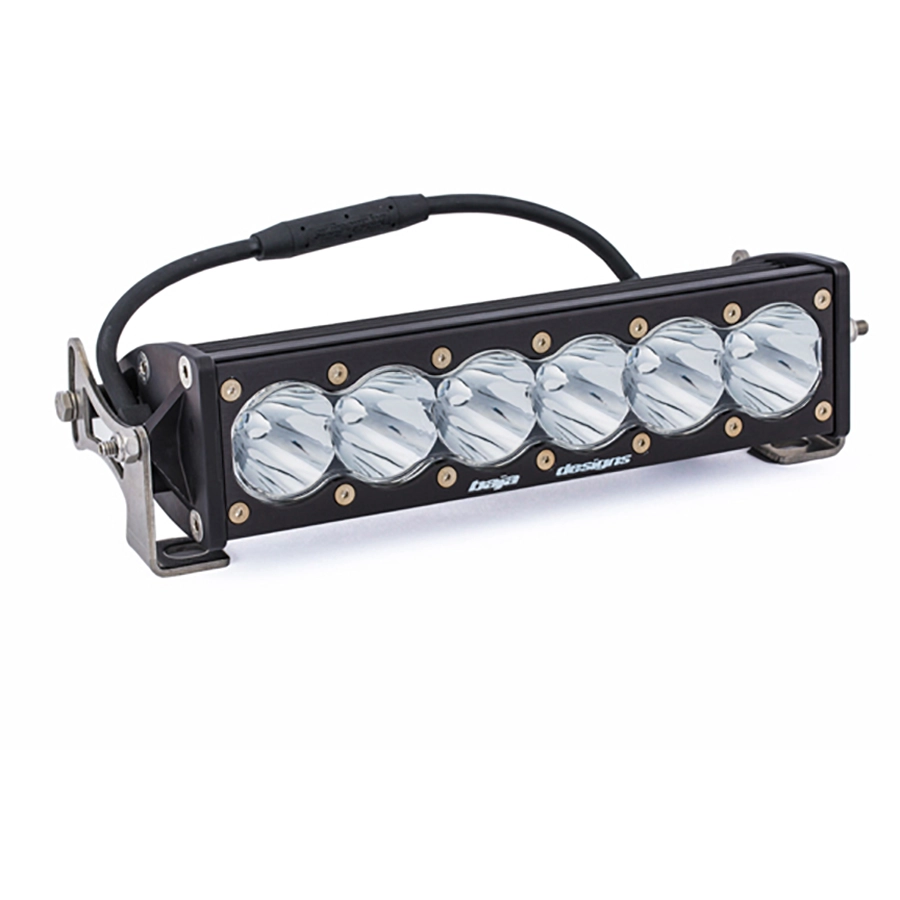

Baja Design OnX6+ 10" LED Light Bar – Spot Beam, Clear

Overview

Blaze new trails or race to the podium with the Baja Designs OnX6+ 10" Straight LED Light Bar. Packing 10,817 raw lumens into a compact mil-spec housing, this high-speed spot beam light is engineered for serious off-roaders who demand range, clarity, and uncompromising durability. With trademarked CopperDrive technology and a crisp 5000K daylight output, you’ll see more, react faster, and ride longer—day or night.

Key Features

• High-Speed Spot Beam: Designed for long-range illumination at high speeds
• Powerful Output: 10,817 lumens with advanced next-gen LED tech
• uService Design: Replace lenses and optics without voiding your warranty
• MoistureBlock Protection: Fully waterproof, dustproof, and submersible
• Built for Abuse: Race-proven mil-spec aluminum housing
• Natural Light: 5000K color temp reduces fatigue and improves visibility

Specifications

• Length: 10"
• Light Output: 10,817 Lumens
• Beam Pattern: Spot / Clear
• Power Draw: 106.3W / 7.70A
• LED Technology: CopperDrive – 100% drive rate
• Color Temperature: 5000K (Daylight)
• Housing: Mil-Spec Hard Anodized Aluminum
• Lens: Replaceable Hardcoated Polycarbonate
• Waterproof Rating: IP69K / MoistureBlock
• Compliance: Exceeds MIL-STD810G & IK10 impact standards

What’s Included

• (1) OnX6+ 10" LED Light Bar – Spot Beam
• (2) Mounting Brackets
• Installation Instructions

Note: Wiring harness sold separately – use part #640115 for 10–20" OnX6+ bars.

When you demand serious light output in a compact form, the OnX6+ 10" delivers the distance, durability, and daylight clarity that Baja Designs is known for.
